The Graphing interaction supports the following: Line Graph, Scatter Plot, Polygon Graph, Quadratic, Exponential, and Absolute Value. Authors can add a prompt, set the graph type(s), grid coordinates, the axis min/max and labels, change the line settings as well as add pre-plotted points. Students can choose the graph type from the dropdown, add responses by clicking in the graph, moving points around and removing responses. This is a machine scored interaction.
See Author Test Items for general instruction on item creation.

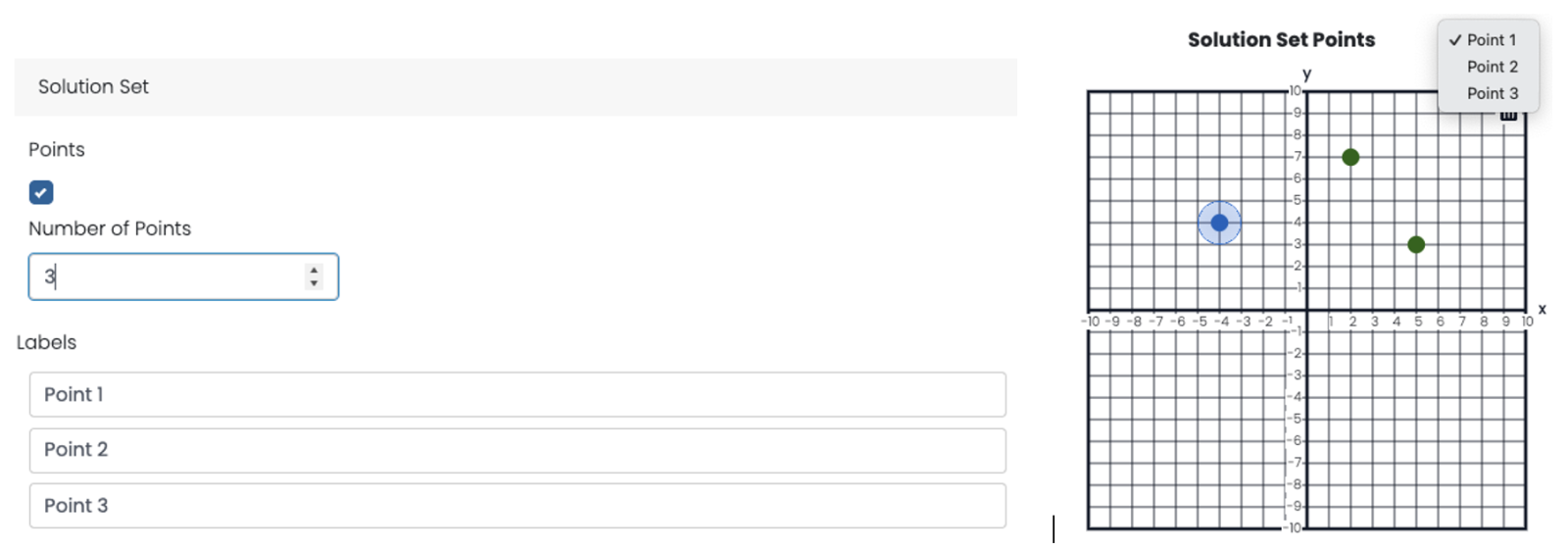

Sample Point Graph Interactions
Add Labels to Graph Types
Authors can add labels to graph types so the dropdown can display other terms or languages. The ‘Type Labels’ field appears on the Editor tab dynamically with the selected types. When a single type is selected the section will be hidden.
Display Origin Other than 0,0
You can show an origin that is not (0,0). Both origins will show if they are different values on the x and y axis, but only one shows if the value is the same.
The sample on the left has two different origins; the sample on the right has the same value.
Quadratic Initial State Option
Authors can set an initial state of a quadratic graph that students can then drag in order to set their response. Initial state will always use coordinates (0,0) and (1,1). Students can reset their response to the original state by using the Reset button.
